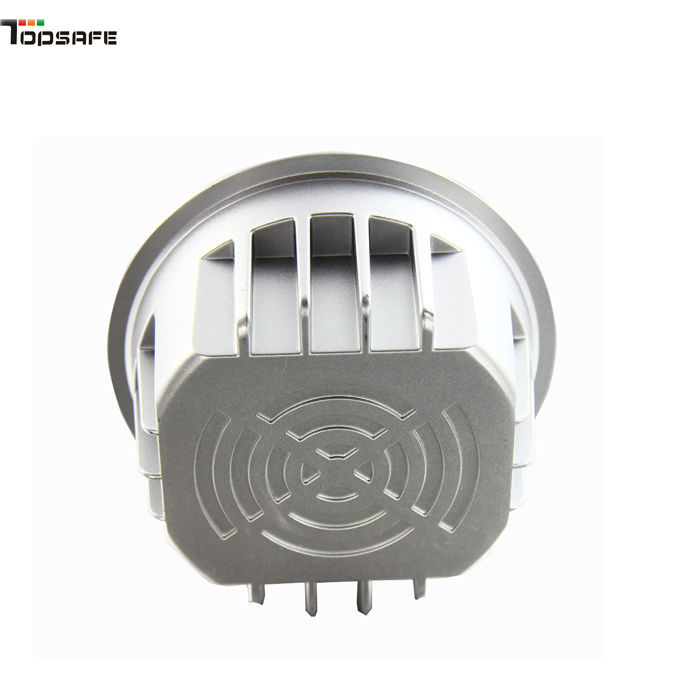

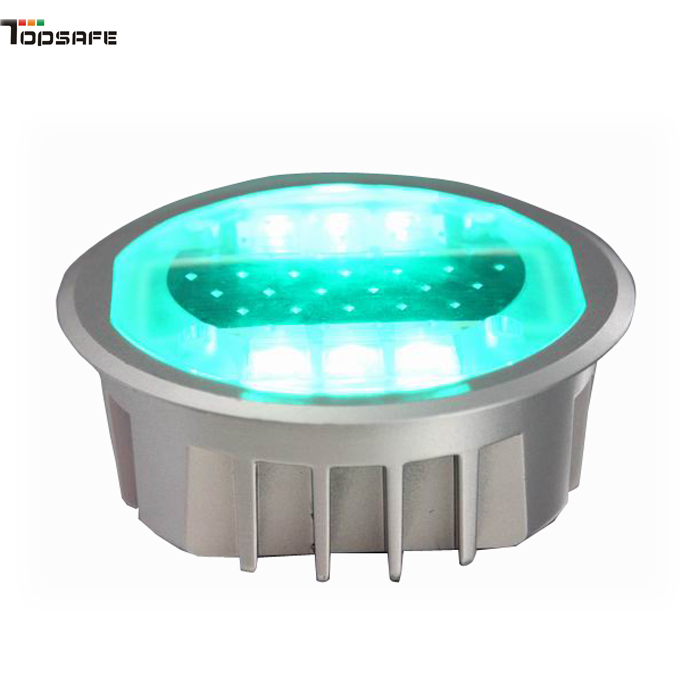

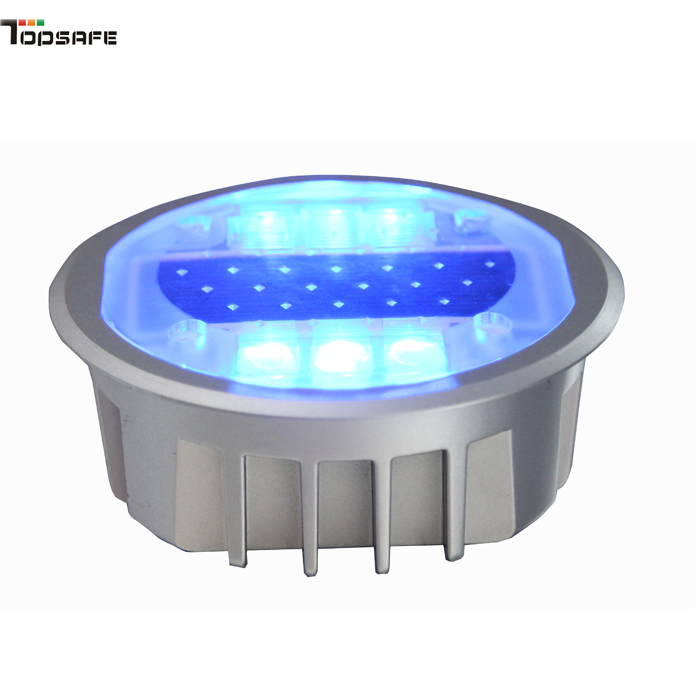

Solar Cat Eye Flashing Embedded Road Stud

1.Built-in GPS, can make the road stud synchronized flashing

2.Need no external power supply and wire

3.Embedded road stud can be installed in the middle of the road


Details

*Size: Ф120*50(mm)

*unit weight: 0.7KG

*Material: Cast Aluminum.

*Solar panel: 2.5V/180MAH Monocrystalline silicon

*Storge device: Two 120F/2.3V Capacitor or NI-MH 1.2V/600MAH.

*Duration time:

-60 hours for Capacitor(can be optional with more capacitor),

-180hours for battery with flashing modes.

*Working modes: flashing(2Hz±20%)or constant

*Led color: red/white/yellow/blue/green

*LED: 3pcs/side φ10mm super brightness LED

*Visibility: 1000m(approx)

*Life: 5 years with capacity,3 years with battery.

*Working Temperature: -30℃~+70℃

*Protection level: IP68

*Light intensity of beginning:less then 500Lux(can be adjusted as per request)

*Load bearing: over 30tons
